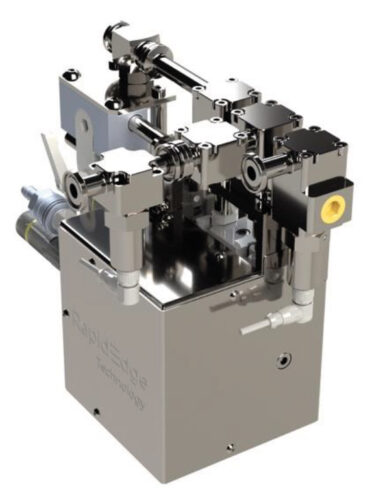

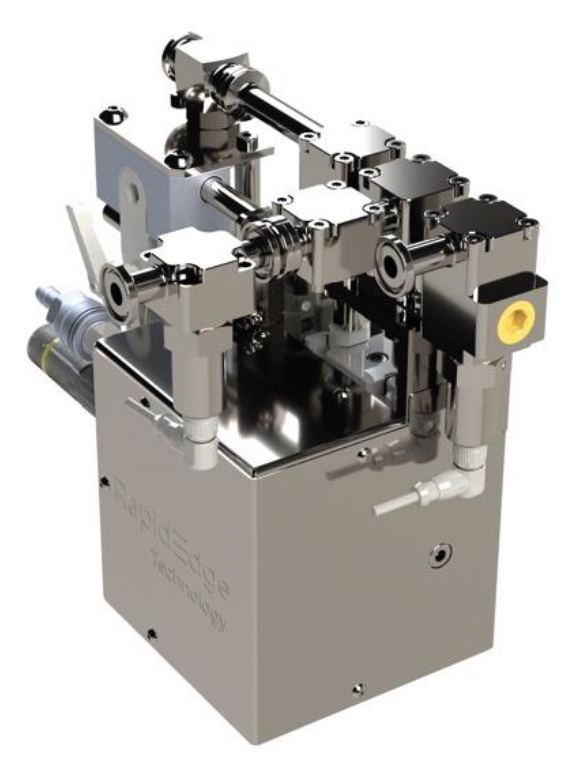

Intermittent Coating System
IMS
Key Features
• Automatic control system
• Closed-loop control of length and quality parameters
• Integrated pressure monitoring and control
• Simultaneous coating of different layers / liquids
• Inline logging of KPIs
• Easy integration into existing lines
• Easy to clean
• Upgradeable for higher coating speed up to 85 m/min
| Performance | |
|---|---|
| Length of coating / non-coating | ≤ 5 mm - ∞ (≤ 1 mm depending on condition) |
| Patch Format | Up to 5 different coating / non coating length per sequence |
| Speed range | 1 m/min – 30 m/min |

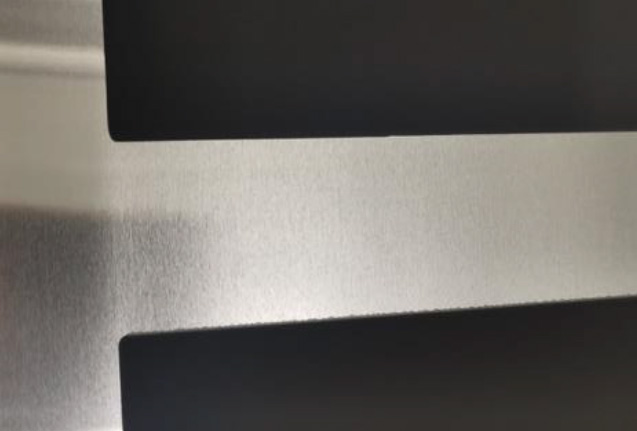

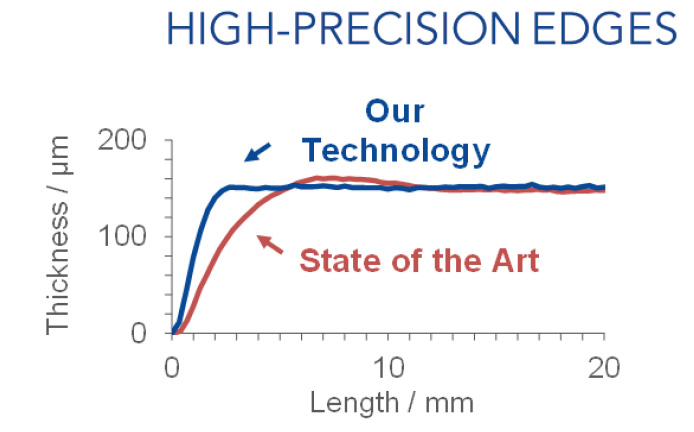

Quality Samples

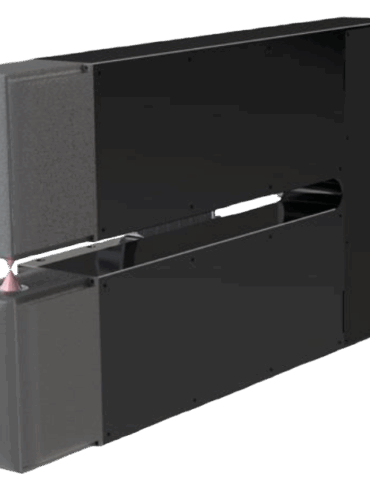

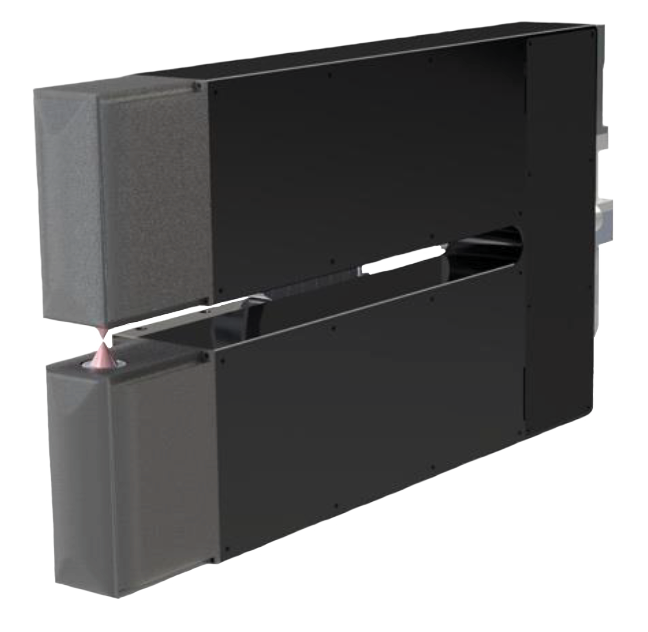

Coating Measurement System
CMS
Key Features
• Measuring all important values in one combined scanner

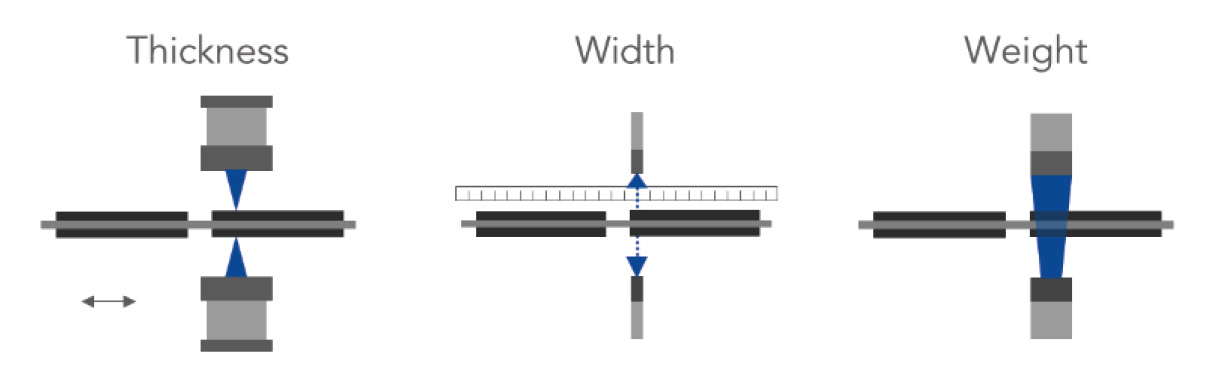

• Multi-sensor: Up to 3 in 1 (Thickness, Width and Weight)
• Small installation space (Customizable for retrofitting)
• Closed-loop control of coating
| Performance | |
|---|---|
| Thickness sensor Resolution | < 1 μm |
| Thickness spot size | 10 μm |
| Width sensor | Width, position and offset of coating stripes / non-coating and foil |
| Width Resolution | < 0.1 mm |
| Speed range | 1 m/min – 150 m/min |

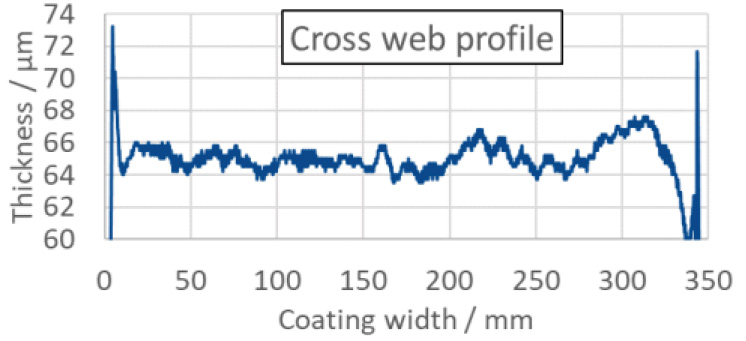

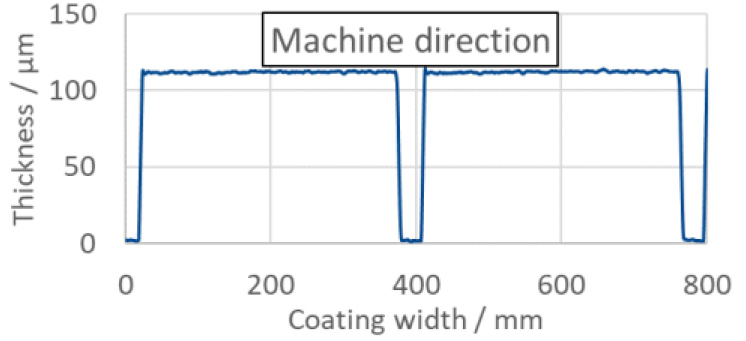

Quality Samples

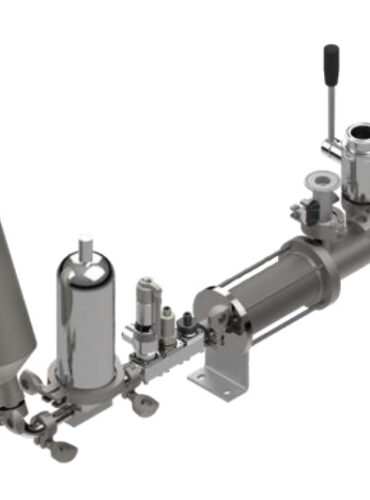

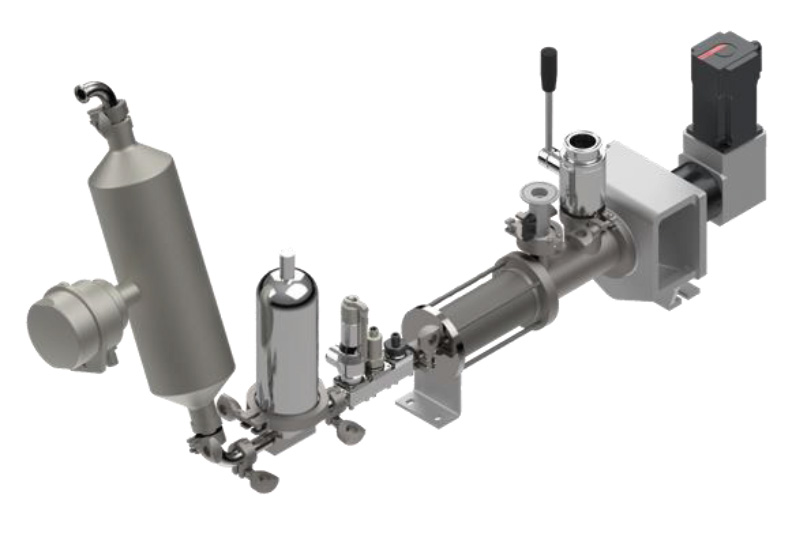

Fluid Delivery System
FDS
Key Features
• Closed-loop control of coating weight
• Pulsation-free, precise dosing
• Lean design / low hold-up volume
• Integrated sensors for pressure and temperature
• Option for flow meter and viscosity meter
• Excellent reachability of components
• Easy to setup and to clean
• Made for simultaneous multilayer-coating
| Performance | |
|---|---|
| Volume flow | 100 ml/min up to 15.000 ml/min |
| Speed range | 1 m/min – 150 m/min |

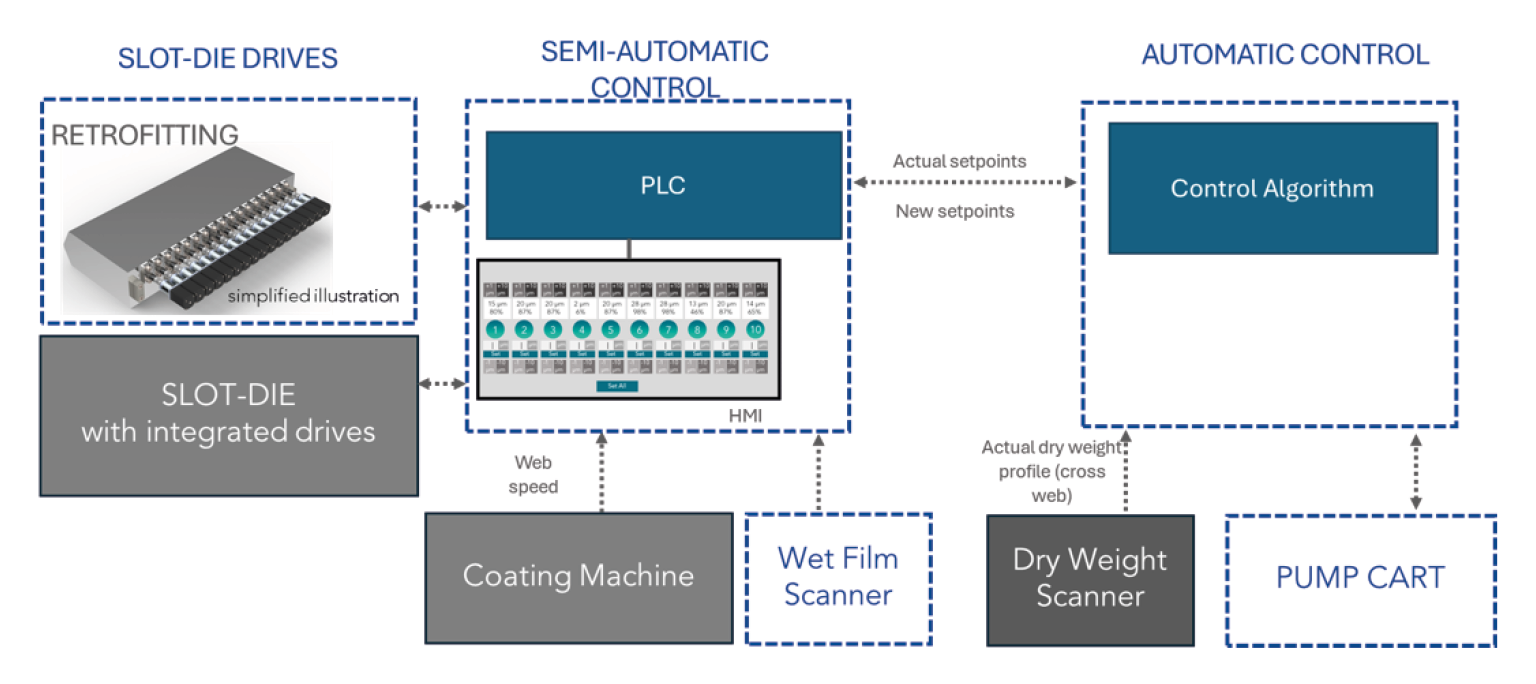

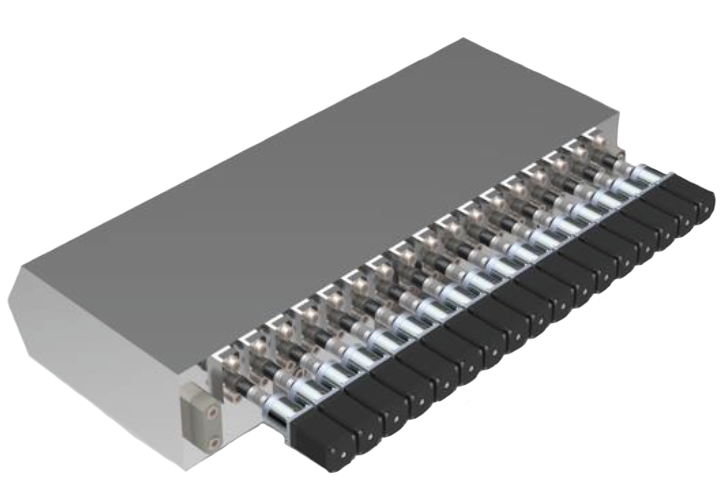

Automatic Slot-Die Adjustment
ASD
Key Features
• Automatic adjustments of flexible slot-die
• Faster start-up of coating
• Saving / restoring the last settings
• Retrofitting: RapidEdge drives for existing slot-dies
• Reproducible adjustment via HMI, no manual bolt
adjustment
• Automatic adjustment with feedback loop
| Performance | |
|---|---|
| Speed range | 1 m/min – 150 m/min |
